| Τόπος καταγωγής: | Wuxi, Κίνα |
| Μάρκα: | Werna |
| Πιστοποίηση: | CE,ISO9001,SASO |
| Αριθμό μοντέλου: | WR224D |
| Ποσότητα παραγγελίας min: | 5pcs |
|---|---|
| Τιμή: | negotiation |
| Συσκευασία λεπτομέρειες: | κοντραπλακέ |
| Χρόνος παράδοσης: | μέσα σε 10 ημέρες |
| Όροι πληρωμής: | T/T |
| Δυνατότητα προσφοράς: | 1000Units/Month |
| Διέγερση: | Αβούρτσιστος, αυτοερεθιζόμενος, synchro | Κατηγορία μόνωσης: | Χ |
|---|---|---|---|
| Λεπτομέρειες συσκευασίας: | Συσκευασμένος στην τυποποιημένη πλόιμη συσκευασία (ξύλινες περιπτώσεις/κοντραπλακέ κ.λπ.) | Ελεγκτής: | Harsen/βαθύβιος/Smartgen |
| Προαιρετικός: | Ικανότητα δεξαμενών ATS/Fuel/χρώμα/λογότυπο | Εκτιμημένη τάση: | 190-454v |
| Υψηλό φως: | 1800rpm γεννήτρια εναλλασσόμενου ρεύματος diesel,γεννήτρια εναλλασσόμενου ρεύματος diesel 20kw,γεννήτρια εναλλασσόμενου ρεύματος diesel 25kva |
||

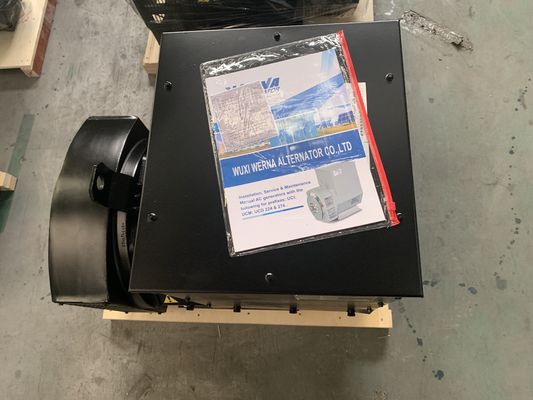

Silent 50HZ 60HZ 20kw 25kva ac alternator diesel generator with 1500/1800rpm
| SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | Werna |
| 2.2 | Engine Model | |
| 2.3 | Governor/Class | Mechanical or Electronic |
| 2.4 | Cylinder NO. | 4 |
| 2.5 | Engine build | Line |
| 2.6 | Emission compliant | Stage II |
| 2.7 | start-up method | 24V, electric |
| 2.8 | Air intake type | Natural |
| 2.9 | Cooling mode | Water Cooling |
| 2.10 | Bore and stroke | 102×118 mm |
| 2.11 | Compression ratio | 17:01 |
| 2.12 | Displacement | 3.86 |
| 2.15 | Lubrication oil capacity | 12.5L |
| 2.16 | Oil consumption | 0.06 |
| 2.17 | Dry weight of base | 350Kg |
| 2.18 | Dry weight of Gen Pac | 375Kg |
| 2.19 | Overall dimension(G.P) | 1155×680×835(mm) |
| 2.2 | Overall dimension(base) | 810×680×800(mm) |
| 2.21 | 27℃ air consumption ( m³/ min) | 2.6 |
| 2.22 | Fuel type | #0 Diesel (Natural temperature) |
| 2.23 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.24 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |

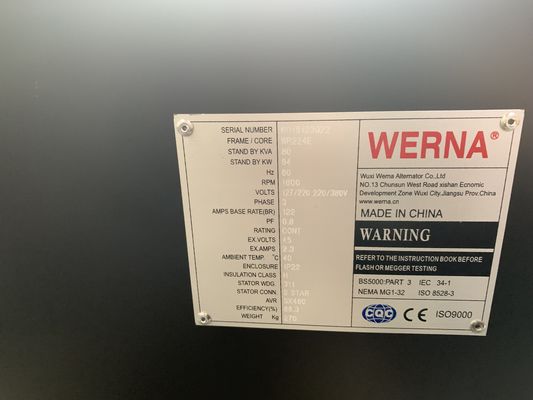

| 3. SPECIFICATIONS OF ALTERNATOR | ||
| 3.1 | Alternator Model | UP184E |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5% |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 45.1A |
| 3.12 | Efficiency | 0.862 |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1,NEMA1 |
| 3.17 | Max. Ambient Temperature | 40℃ |
| 3.18 | Min. Ambient Temperature | - 20℃ |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 156KG |
| Please Click Here to Contact Us for More Info. | ||
Description:
We are Professional Manufacture for Brushless Alternator since the year of 2000, Which type are Copy of Stamford.There are 5kVA up to 1386kVA at 1500/1800rpm, 3000/3600rpm, with 50/60Hz, 110V-690V for you selected.Our company located in Wuxi city, Which is near Shanghai.We have a first-class technical personnel and a set of strict quality management system.We use the best materials and carry out the strict procedure to ensure our high quality. For example ,we have two vacuum leaching insulated paint ,which other companies can't do. Besides our Quality Engineer are old engineer who have rich experiences. And our price is reasonable for share of market is first in our company.
The varnished wire our factory use is the H level of 200℃.And the manufacture is the famous public factory whose quality reputation is stable and reliable.
The silicon steel sheet we use is the products of Shanghai Baoshan Steel Co.,Ltd,which is the biggest and most famous manufacture of steel.And its advantage is its magnetic flux is large and its iron loss is small.
The insulating paper we use are supplied by a factory in Suzhou which is invested by a foreign company.The company has strict standard of quality management.They use the material of Dupont and imported glue water.Through the survey and detection,the quality is absolutely the best.
The main frame of the alternator and lead box are made of steel,the end cover is made of high strength cast iron.
The craft of our company use the standard of Stamford.All the workers should be trained for a long time.And we carry out the management of 6s.
All the components of our factory,the stator,rotor and excitation will be dippinglacquer twice.This is a process that other factories never used.Because it would take much more electric charge,and make the insulated paint consume and loss twice,so it will increase the cost.What's more,all the components should be handled through the process of dampproof,salt and fog proof, anti-corrosion.
competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
